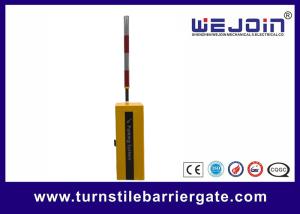

Automatic Boom Barrier Gate DC24V Brushless Motor for Parking Lots

Brand Name : WEJOIN

Model Number : DZJ-S

Certification : CE ISO SGS

Place of Origin : CHINA

MOQ : 1 set

Price : negociate

Payment Terms : T/T

Supply Ability : 10000 sets/month

Delivery Time : 7 working days

Packaging Details : carton

operating time : 0.6s~4s

boom type : Straight Round Arm

housing material : steel with powder coating

Color : Yellow

Application : parking lot

Warranty : 2 Year

Contact Now

100% Duty Cycle Automatic Boom Barrier Gate DC24V Brushless Motor


Boom Barrier Basic Features:

1. This product is motor-driven, with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times or more, spring life of 1 million times.

2. The barrier gate comes standard with the rebound function, when the boom is blocked in the process of falling, it will rebound automatically.

3. Support external radar, ground sensor, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. DC24V power supply is optional.

Intelligent Barrier Types:

Model

 WJCB05
Running Speed (Seconds: S) 0.6~1.5S
Boom Type Round Carbon Fiber Boom
Max Boom Length (Meters: M) 3~4M
Cabinet Dimension (W*D*H) 335*285*976MM
Power Supply Input Voltage AC100~265V
Control Board Input Voltage DC24V±10%, 10A
Motor Voltage DC24V
Enclosure Rating IP54

Common Malfunctions and Solutions

Malfunction Phenomenon:The opening speed is fast at the first power-on

Possible Causes :The power-on self-learning speed of P-13 is too fast.

Solution:Reduce 1-XX and 2-XX of P-13.

Malfunction Phenomenon:When manually finding the limit, the barrier can’t open or close to limit position, and the buzzer alarms

Possible Causes :The power-on self-learning speed of P-13 is too slow.

Solution:Increase 1-XX and 2-XX of P-13, and try again.


Automatic Boom Barrier Gate DC24V Brushless Motor for Parking Lots
